The gallery

Six real plans, and the source behind each one.

Nothing here is hand-drawn. Every plan is compiled from the source beside it — hover a line and watch its room light up on the drawing.

Residential84 m²

Courtyard Apartment

A two-bed flat wrapped around a daylit central court.

courtyard-apartment.arch

compiles

1plan "Courtyard Apartment" {
2  units mm
3  scale 1:100
4  dims auto all
5
6  wall exterior  thickness 200 { (0,0) (9600,0) (9600,8400) (0,8400) close }
7  wall partition thickness 100 { (4800,0) (4800,8400) }
8  wall partition thickness 100 { (4800,4800) (9600,4800) }
9  wall partition thickness 100 { (7600,4800) (7600,8400) }
10
11  room id=living at (0,0)       size 4800x8400 label "Living / Kitchen" uses living kitchen
12  room id=court  at (4800,0)    size 4800x4800 label "Courtyard"
13  room id=bed    at (4800,4800) size 2800x3600 label "Bedroom" uses bedroom
14  room id=bath   at (7600,4800) size 2000x3600 label "Bath" uses bath
15
16  door    at (1400,8400) width 1000 wall exterior hinge left swing in
17  window  at (0,3000)    width 1400 wall exterior
18  window  at (9600,2400) width 1400 wall exterior
19  window  at (6200,8400) width 1200 wall exterior
20  opening at (4800,2000) width 1200 wall partition
21  door    at (5800,4800) width 900  wall partition hinge left swing in
22  door    at (9100,4800) width 900  wall partition hinge left swing in
23
24  # Kitchen run along the north wall
25  furniture kitchen_sink at (300,300)  size 800x600
26  furniture counter      at (1150,300) size 700x600
27  furniture stove        at (1900,300) size 600x600
28  furniture fridge       at (2550,300) size 600x650
29  # Living
30  furniture sofa  at (700,5600)  size 2000x900
31  furniture table at (1000,4400) size 1100x600
32  # Bedroom
33  furniture bed       at (5000,6100) size 1500x2000
34  furniture wardrobe  at (6700,5000) size 600x1600
35  # Bath
36  furniture shower at (7700,5100) size 900x900
37  furniture wc     at (7800,7400) size 400x700
38  furniture basin  at (8700,7400) size 600x450
39}

39 linescompiles

Residential46 m²

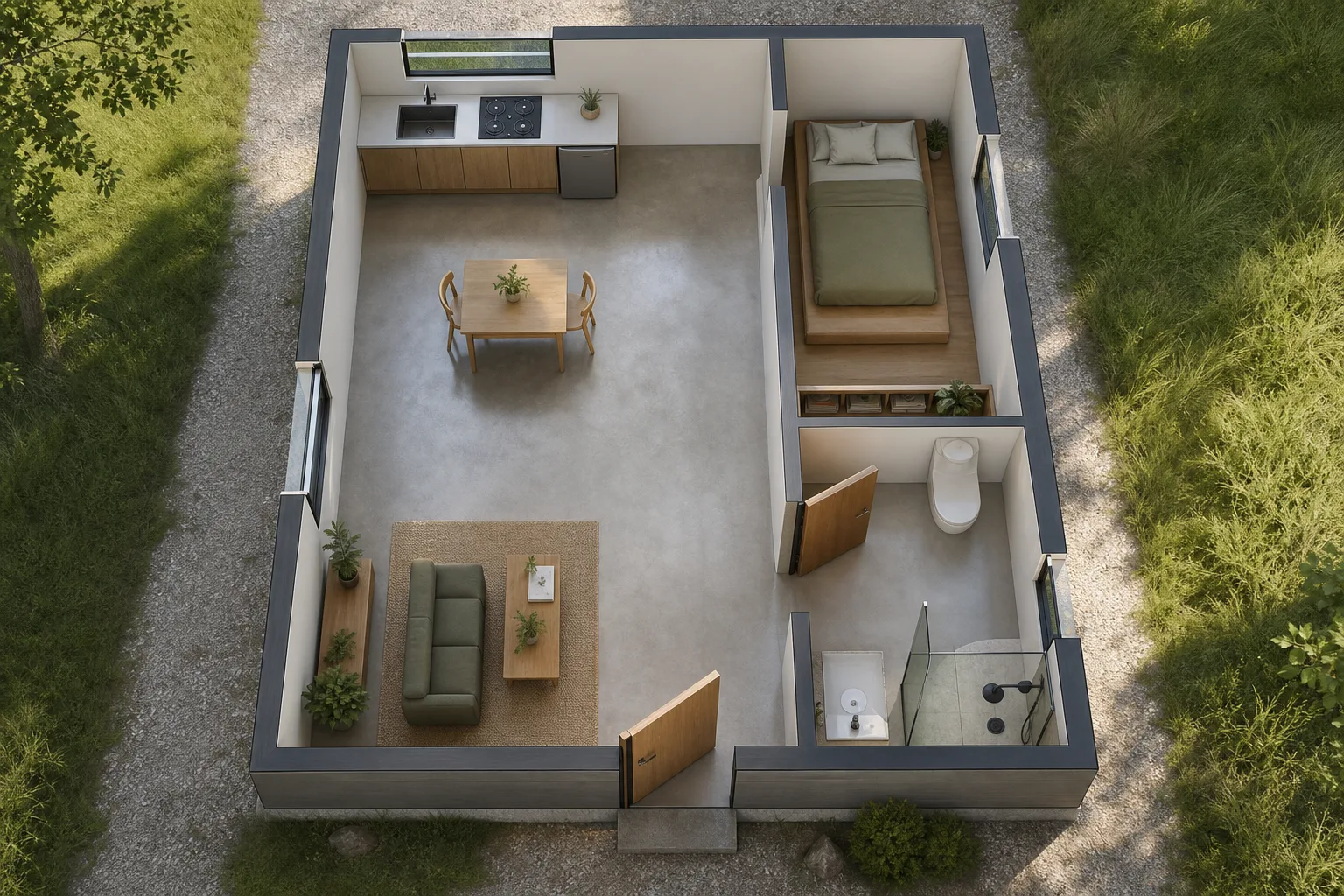

Studio Loft

Open living with a tucked sleeping alcove.

studio-loft.arch

compiles

1plan "Studio Loft" {
2  units mm
3  scale 1:100
4  dims auto all
5
6  wall exterior  thickness 200 { (0,0) (6000,0) (6000,7600) (0,7600) close }
7  wall partition thickness 100 { (4200,0) (4200,7600) }
8  wall partition thickness 100 { (4200,4600) (6000,4600) }
9
10  room id=studio at (0,0)       size 4200x7600 label "Studio / Kitchen" uses living kitchen
11  room id=alcove at (4200,0)    size 1800x4600 label "Sleeping Alcove" uses bedroom
12  room id=bath   at (4200,4600) size 1800x3000 label "Bath" uses bath
13
14  door    at (1200,7600) width 1000 wall exterior hinge left swing in
15  window  at (0,2400)    width 1600 wall exterior
16  window  at (0,5200)    width 1600 wall exterior
17  window  at (6000,2000) width 1200 wall exterior
18  opening at (4200,1500) width 1000 wall partition
19  door    at (4200,6000) width 800  wall partition hinge left swing in
20
21  # Kitchen run along the north wall
22  furniture kitchen_sink at (300,300)  size 800x600
23  furniture counter      at (1150,300) size 700x600
24  furniture stove        at (1900,300) size 600x600
25  furniture fridge       at (2550,300) size 600x650
26  # Living
27  furniture sofa  at (700,5400)  size 1800x800
28  furniture table at (900,4100)  size 1000x600
29  # Sleeping alcove
30  furniture bed   at (4400,500)  size 1400x1900
31  # Bath
32  furniture basin  at (4300,4700) size 600x450
33  furniture shower at (5000,4700) size 900x900
34  furniture wc     at (5400,6800) size 400x700
35}

35 linescompiles

Workspace62 m²

Garden Office

A focused studio with storage and a meeting nook.

garden-office.arch

compiles

1plan "Garden Office" {
2  units mm
3  scale 1:100
4  dims auto all
5
6  wall exterior  thickness 200 { (0,0) (8400,0) (8400,6600) (0,6600) close }
7  wall partition thickness 100 { (5400,0) (5400,6600) }
8  wall partition thickness 100 { (5400,3600) (8400,3600) }
9  wall partition thickness 100 { (6900,3600) (6900,6600) }
10
11  room id=studio  at (0,0)       size 5400x6600 label "Studio" uses office
12  room id=meeting at (5400,0)    size 3000x3600 label "Meeting" uses office
13  room id=store   at (5400,3600) size 1500x3000 label "Store" uses storage
14  room id=wc      at (6900,3600) size 1500x3000 label "WC" uses wc
15
16  door   at (1400,0)    width 1000 wall exterior hinge left swing in
17  window at (8400,1800) width 1600 wall exterior
18  window at (0,3300)    width 2000 wall exterior
19  opening at (5400,1600) width 1000 wall partition
20  door   at (5400,5000) width 800 wall partition hinge left swing in
21  door   at (6900,5000) width 700 wall partition hinge left swing in
22
23  # Studio: two desks + a shelving counter along the south wall
24  furniture desk    at (3400,500)  size 1600x800
25  furniture desk    at (3400,1700) size 1600x800
26  furniture counter at (500,5800)  size 2400x600
27  # Meeting
28  furniture table at (6000,900)  size 1600x1000
29  # WC
30  furniture wc    at (7000,5800) size 400x700
31  furniture basin at (7700,3800) size 600x450
32}

32 linescompiles

Residential98 m²

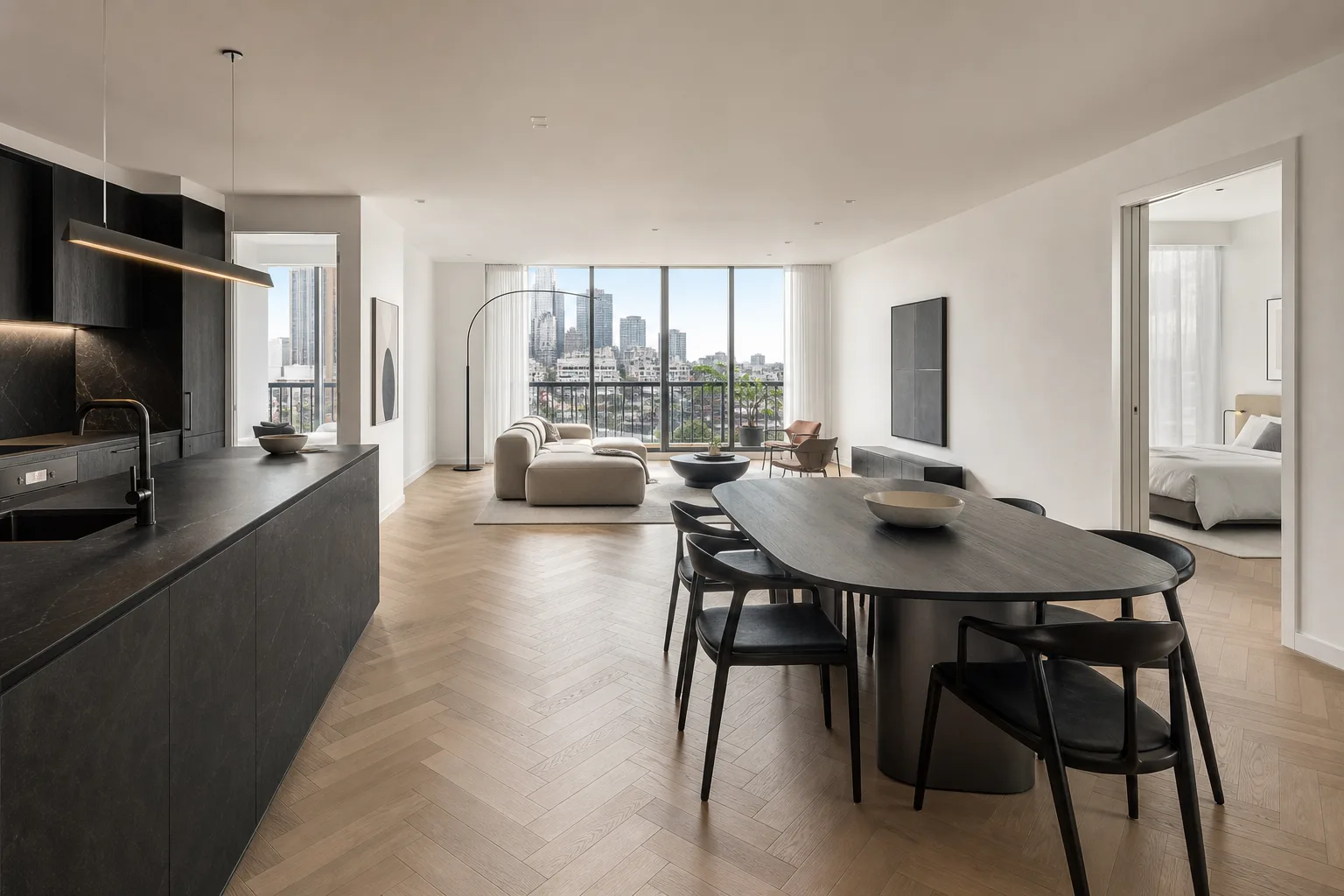

Open-Plan Flat

Generous living that flows into a galley kitchen.

open-plan-flat.arch

compiles

1plan "Open-Plan Flat" {
2  units mm
3  scale 1:100
4  dims auto all
5
6  wall exterior  thickness 200 { (0,0) (11000,0) (11000,8000) (0,8000) close }
7  wall partition thickness 100 { (6600,0) (6600,8000) }
8  wall partition thickness 100 { (6600,4200) (11000,4200) }
9  wall partition thickness 100 { (8800,4200) (8800,8000) }
10
11  room id=open  at (0,0)       size 6600x8000 label "Living / Kitchen / Dining" uses living kitchen dining
12  room id=bed   at (6600,0)    size 4400x4200 label "Master" uses bedroom
13  room id=bath  at (6600,4200) size 2200x3800 label "Bath" uses bath
14  room id=util  at (8800,4200) size 2200x3800 label "Utility" uses utility
15
16  door   at (1600,8000) width 1000 wall exterior hinge left swing in
17  window at (0,2600)    width 1800 wall exterior
18  window at (0,5400)    width 1800 wall exterior
19  window at (11000,2000) width 1600 wall exterior
20  door   at (6600,2000) width 900 wall partition hinge left swing in
21  door   at (7600,4200) width 800 wall partition hinge left swing in
22  door   at (8800,6000) width 700 wall partition hinge left swing in
23  door   at (6600,6100) width 900 wall partition hinge left swing in
24
25  # Kitchen run along the north wall
26  furniture kitchen_sink at (300,300)  size 800x600
27  furniture counter      at (1150,300) size 700x600
28  furniture stove        at (1900,300) size 600x600
29  furniture fridge       at (2550,300) size 600x650
30  # Dining + living
31  furniture table at (1200,3600) size 1800x1000
32  furniture sofa  at (2800,6200) size 2200x900
33  # Master
34  furniture bed      at (7000,500)   size 1600x2100
35  furniture wardrobe at (10200,500)  size 600x1800
36  # Bath
37  furniture wc    at (7000,7000) size 400x700
38  furniture basin at (8000,7000) size 600x450
39  # Utility worktop
40  furniture counter at (8900,4400) size 2000x600
41}

41 linescompiles

Residential38 m²

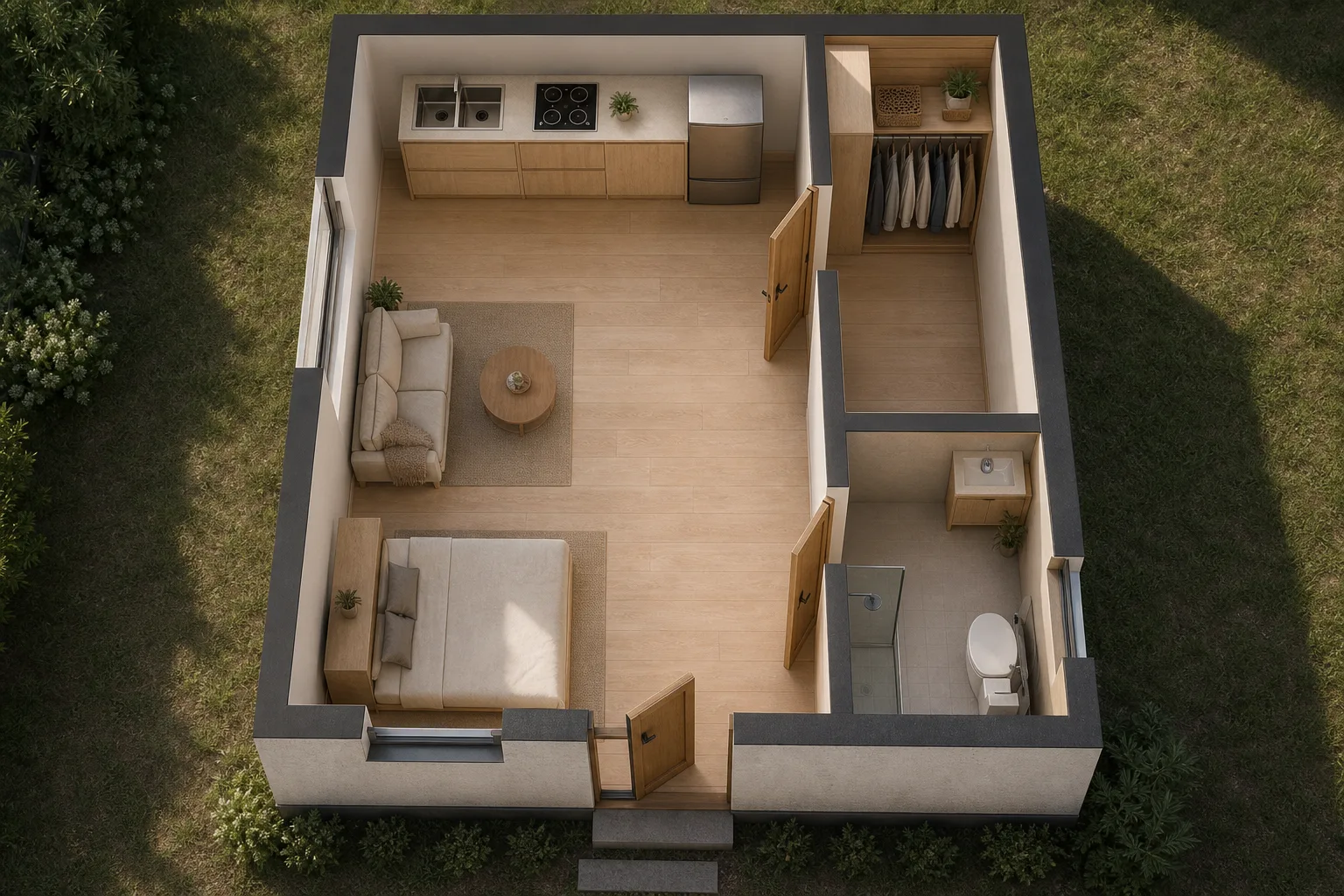

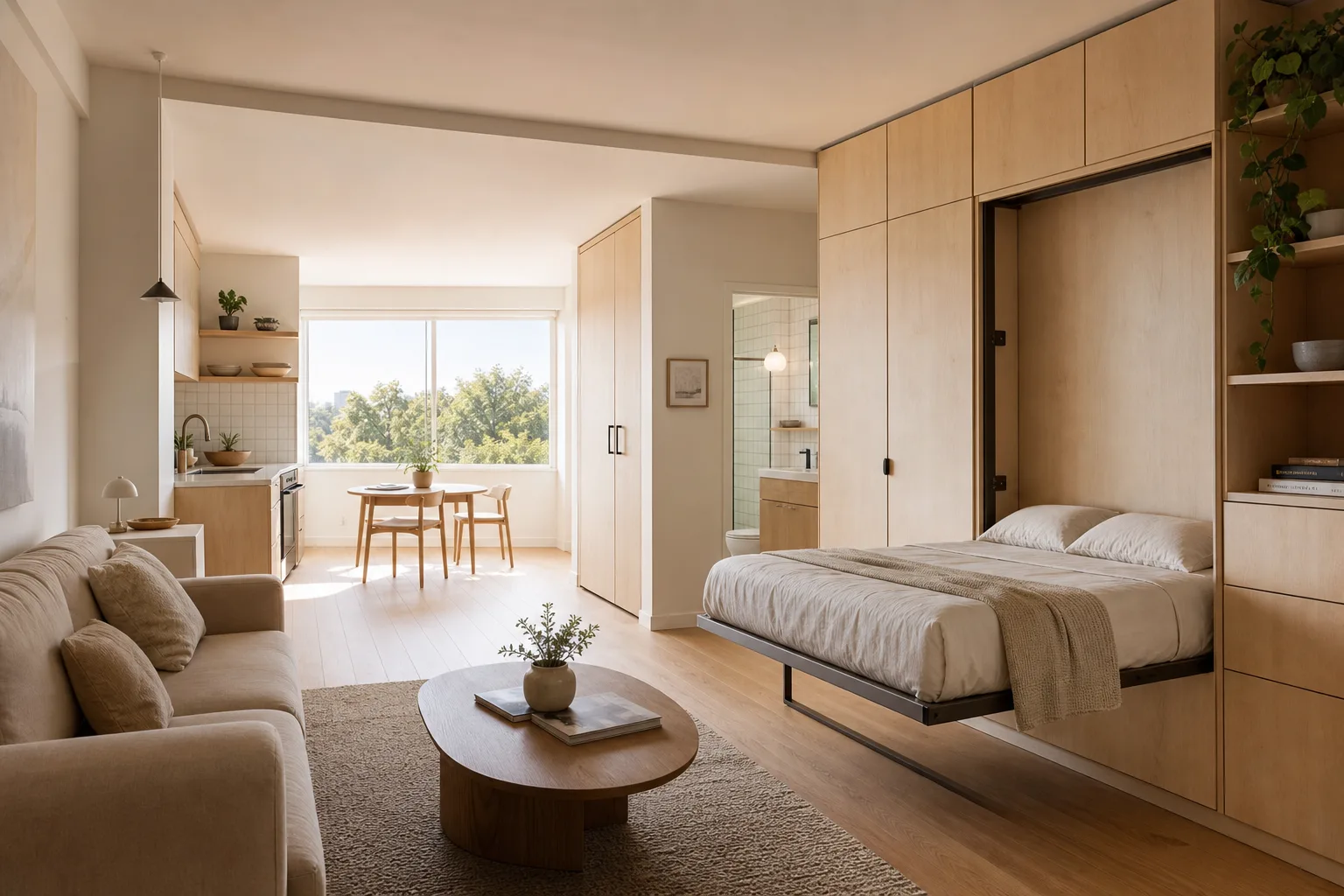

Compact Bedsit

Every millimetre resolved for small-footprint living.

compact-bedsit.arch

compiles

1plan "Compact Bedsit" {
2  units mm
3  scale 1:100
4  dims auto all
5
6  wall exterior  thickness 200 { (0,0) (5200,0) (5200,6600) (0,6600) close }
7  wall partition thickness 100 { (3600,0) (3600,6600) }
8  wall partition thickness 100 { (3600,4000) (5200,4000) }
9
10  room id=living at (0,0)       size 3600x6600 label "Living / Sleep / Kitchen" uses living kitchen
11  room id=store  at (3600,0)    size 1600x4000 label "Wardrobe" uses storage
12  room id=bath   at (3600,4000) size 1600x2600 label "Bath" uses bath
13
14  door   at (1200,6600) width 900 wall exterior hinge left swing in
15  window at (0,2400)    width 1600 wall exterior
16  window at (5200,1800) width 1200 wall exterior
17  door   at (3600,2000) width 800 wall partition hinge left swing in
18  door   at (3600,5200) width 700 wall partition hinge left swing in
19
20  # Kitchenette along the north wall
21  furniture kitchen_sink at (300,300)  size 800x600
22  furniture counter      at (1150,300) size 700x600
23  furniture stove        at (1900,300) size 600x600
24  furniture fridge       at (2550,300) size 600x650
25  # Living / sleep
26  furniture bed   at (300,3400)  size 1400x1900
27  furniture sofa  at (300,1500)  size 1500x800
28  # Bath
29  furniture basin at (4500,4200) size 600x450
30  furniture wc    at (4000,5800) size 400x700
31}

31 linescompiles

Residential132 m²

Atrium House

A suite and study arranged off a central atrium.

atrium-house.arch

compiles

1plan "Atrium House" {
2  units mm
3  scale 1:100
4  dims auto all
5
6  wall exterior  thickness 250 { (0,0) (12000,0) (12000,11000) (0,11000) close }
7  wall partition thickness 100 { (4800,0) (4800,11000) }
8  wall partition thickness 100 { (8400,0) (8400,11000) }
9  wall partition thickness 100 { (0,5500) (4800,5500) }
10  wall partition thickness 100 { (8400,5500) (12000,5500) }
11
12  room id=living  at (0,0)       size 4800x5500 label "Living" uses living
13  room id=kitchen at (0,5500)    size 4800x5500 label "Kitchen / Dining" uses kitchen dining
14  room id=atrium  at (4800,0)    size 3600x11000 label "Atrium"
15  room id=suite   at (8400,0)    size 3600x5500 label "Master Suite" uses bedroom
16  room id=study   at (8400,5500) size 3600x5500 label "Study" uses office
17
18  door   at (5800,11000) width 1200 wall exterior hinge left swing in
19  window at (0,2600)     width 1800 wall exterior
20  window at (0,8000)     width 1800 wall exterior
21  window at (12000,2600) width 1800 wall exterior
22  window at (12000,8000) width 1800 wall exterior
23  opening at (4800,2400) width 1400 wall partition
24  opening at (4800,8000) width 1400 wall partition
25  door   at (8400,2400) width 900 wall partition hinge left swing in
26  door   at (8400,8000) width 900 wall partition hinge left swing in
27  door   at (3000,5500) width 900 wall partition hinge left swing in
28
29  # Living
30  furniture sofa  at (1200,1200) size 2200x900
31  furniture table at (1500,3200) size 1200x600
32  # Kitchen / dining run along the south wall + dining table
33  furniture kitchen_sink at (300,9900)   size 800x600
34  furniture counter      at (1150,10275) size 700x600
35  furniture stove        at (1900,10275) size 600x600
36  furniture fridge       at (2550,10225) size 600x650
37  furniture table        at (1400,6600)  size 1800x1000
38  # Master suite
39  furniture bed      at (9000,800)  size 1600x2100
40  furniture wardrobe at (9000,4300) size 1800x600
41  # Study
42  furniture desk at (9000,6000) size 1600x800
43}

43 linescompiles
